6.25.1 Saving Data from a DTM to be Upgraded

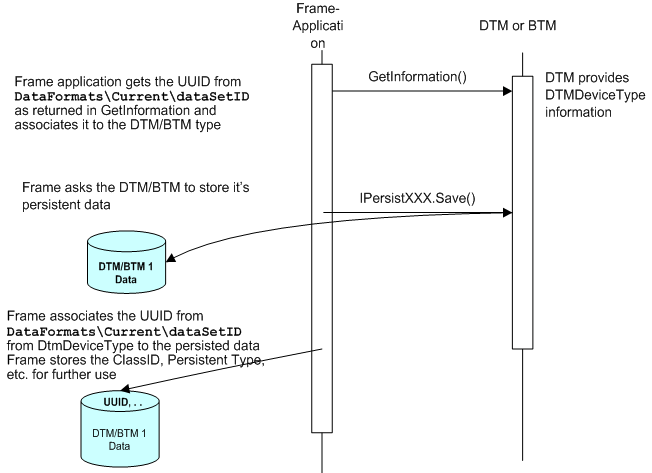

The first step is to store the information from the DTM that is for upgrade. The Frame Application needs to store additional information about the DTM:
- ClassID of the DTM
- UUID of the stored data format
- Storage Type
- Additional information about the device.
|
The provided XPath is incorrect: the correct XPath is //fdt:DtmDeviceType/fdt:DataSetFormats/fdt:Current/@dataSetID.
Note that the element is called DataSetFormats, not DataFormats. <Current> is defined as mandatory. Please note that the data set ID is specified in the information XML. You cannot have a "current" setting there, because GetInformation() is maily called during the catalog update. At this point in time, the DTM does not yet have an initialized data set at all. Instead, <Current> should be present in GetParameters() but should be omitted in GetInformation(). In order to get the currently used data set ID, the frame application should call GetParameters() after Save(). Maybe the DTM stores the data set during every Save() in a different format, or keeps the originally imported format or whatever. At least, it cannot be assumed that it is the data set version from GetInformation(). |
