6.3.5 Manufacturer specific Device Identification

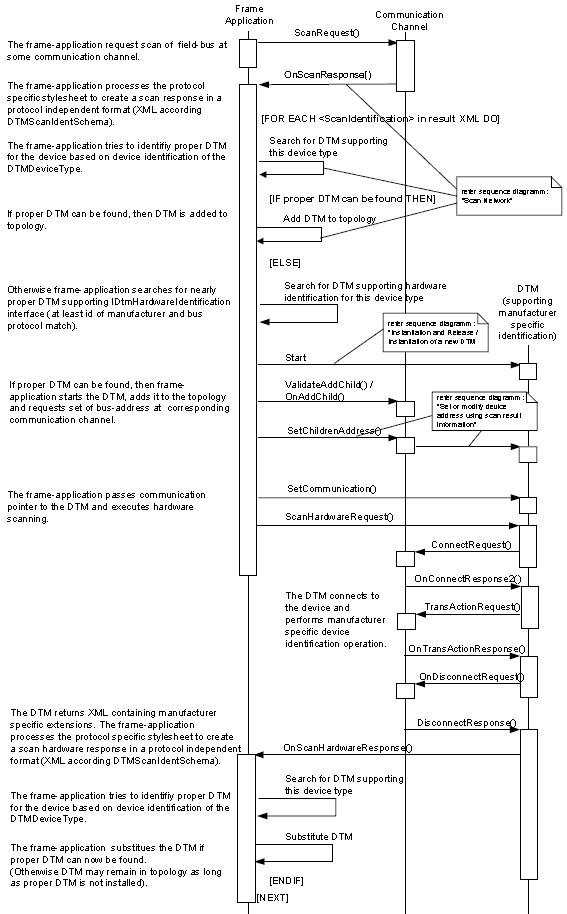

In this scenario a Frame Application scans an existing field-bus network and uses DTM implementing IDtmHardwareIdentification interface to identify devices for which manufacturer specific operation must be performed.
Used methods:
IDtmHardwareIdentification:ScanHardwareRequest()
IDtmScanEvents::OnScanHardwareResponse()
IDtm::SetCommunication()
IFdtChannelSubTopology:ValidateAddChild()
IFdtChannelSubTopology::OnAddChild()
IFdtChannelScan::ScanRequest()
IFdtChannelSubTopology2::SetChildrenAdresses()
IDtmScanEvents::OnScanResponse()
IFdtCommunication::ConnectRequest()
IFdtCommunication::TransactionRequest()
IFdtCommunication::DisconnectRequest()
IFdtCommunicationEvents2::OnConnectResponse2()
IFdtCommunicationEvents::OnTransactionResponse()
IFdtCommunicationEvents::OnDisconnectResponse()
