6.13.2 Instantiation of an Existing DTM

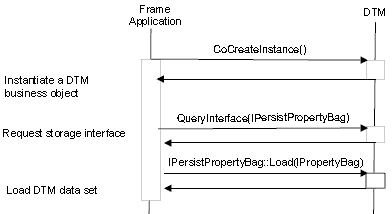

After creation of a DTM business object for an existing instance the Frame Application must request the IPersistXXX interface pointer and call IPersistXXX::Load() with a reference to the stream object of the appropriate field device instance. Within this method the DTM business object must initialize it’s device parameters based on the information of the stream object.
Used methods:
Standard Microsoft
