6.21 Device Initiated Data Transfer

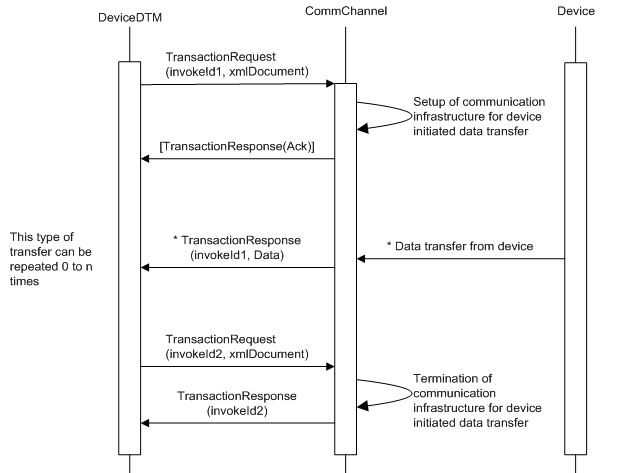

Some protocols support data transfer services that are initiated by the device and not by the DTM. In order to support such services, following approach is recommended:- the infrastructure (filter, service queue) for such services is initiated by a protocol-specific transaction request of the DTM, dependant on the protocol this service may be acknowledged or not
- the device initiated data transfer is transported by transaction responses to the initiating request (they carry the same invokeId)
- the infrastructure for these services is terminated by a protocol-specific transaction request of the DTM, which may carry the original invokeId as an attribute of the request xml-Document.
Device initiated data transfer needs management by the communication infrastructure. That is why it is necessary to unambiguously to identify the request to initialize and terminate this type of behavior. The TransactionRequest()s to initiated or terminate device initiated data transfer will transport protocol specific XML-Documents. The terminating TransactionRequest() will contain the information necessary to terminate the device initiated data transfer. This may include the invokeId of the initiating TransactionRequest(). If a DTM initializes such services, it is required to terminate these services. The termination has to occur, before the DTM can go offline (DisconnectRequest() / Abort()). If the connection is terminated by IFdtCommunicationEvents::OnAbort(), this service is terminated automatically. The support of such services is protocol specific and device specific. If a communication channel is not able to support this type of service, it will return a protocol specific error document in the OnTransactionResponse(), indicating that it is not able to support this feature.
| Changed TransactionResponse to OnTransactionResponse() and provided several braces in order to identify FDT methods. |
