6.4 Registration of Protocol Specific FDT Schemas

In order to add new protocol support to the FDT specification and to existing Frame Application installations, a CommDTM installation must provide protocol specific schemas. There are two cases:

  1. Protocol specific schemas accepted and published by FDT-JIG. These schemas may be released independent on a FDT specification release.
  2. Schemas of a proprietary protocol. In this case all CommDTMs and Device-DTMs are provided in one consistent package. Consistency of all related data must be ensured internally by DTM.

The following structure explains an overall workflow:

  • Installation of DTMs with a channel implementing IFdtCommunication.
    • CommDTM is installed and contains in its setup the merge module of the protocol specific schemas.
    • CommDTM copies the schemas to a CommDTM specific certain path.
  • DTM library update DTMDeviceType information is used for DTMCatalog information.
    • IDtmInformation::GetInformation(), returns an XML document containing schema version and path of protocol specific schemas.
    • Frame Application compares this information with the already known schemas.
    • Frame Application checks, if schemas are already available in Frame Applications sub schema path and copies the schemas if not, or if higher version is offered.
    • Frame Application is responsible to synchronize the schema files over all subdirectories.
    • Frame Application gets additional protocol specific device identification information from a DTM by calling IDtmInformation2::GetDeviceIdentificationInformation().

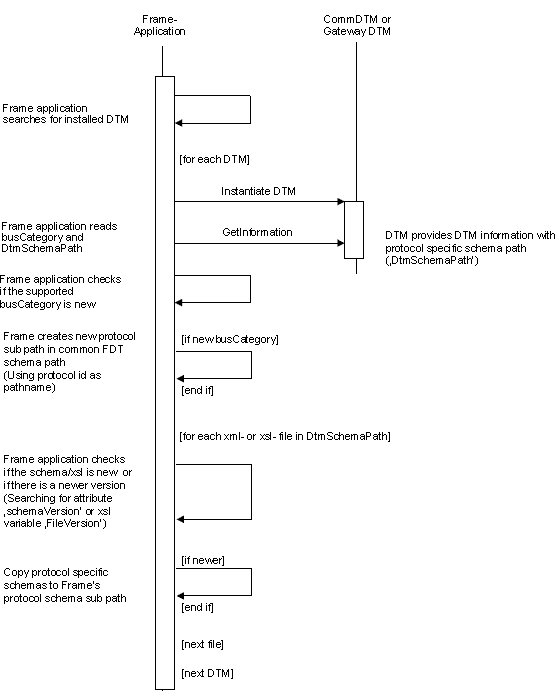

Sequence diagram: Add new protocol specific schemas to Frame Applications schema sub path

Used methods:
IDtmInformation::GetInformation()


Sequence diagram: Frame Application reads protocol specific device identification information of DTMDeviceTypes
