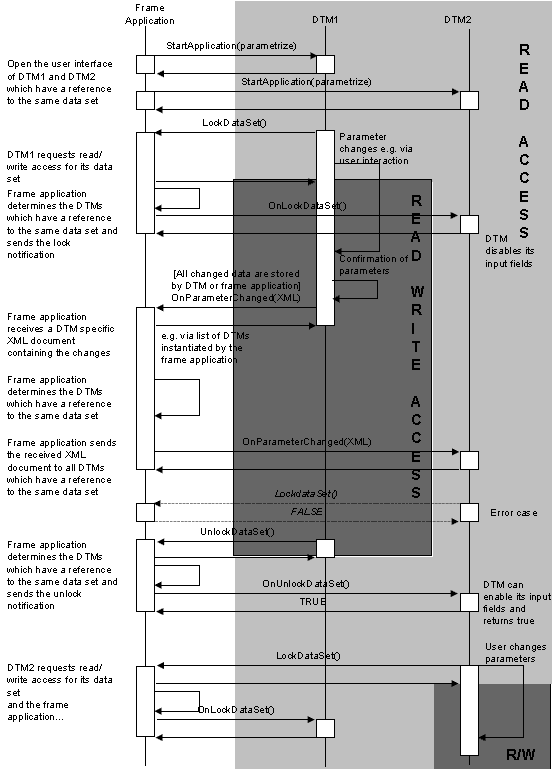

6.12.2 Locking for Synchronized DTMs
The synchronization of DTMs is an optional feature to provide a better handling for the user within a multi-user environment.
Used methods:
IDtmApplication::StartApplication()
IFdtContainer::LockDataSet()
IFdtContainer::UnlockDataSet()
IDtmEvents::OnParameterChanged()
IFdtEvents::OnParameterChanged()
IFdtEvents::OnLockDataSet()
IFdtEvents::OnUnlockDataSet()
