6.24.1 Supports IFdtChannelActiveXControl2

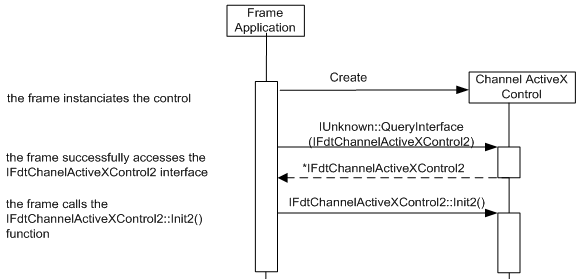

This diagram describes the sequence of the channel ActiveX control initialization for the case that the channel ActiveX control provides the IFdtChannelActiveXControl2 interface.
Used methods:
IUnkown::QueryInterface
IFdtChannelActiveXControl2::Init2()
