6.3.3 Provisional Scan Result Notifications

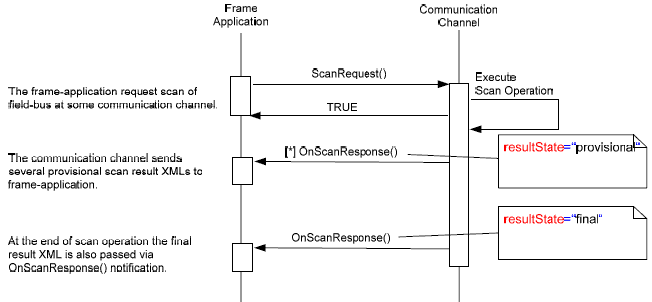

In this scenario communication channel sends provisional TopologyScan result XMLs to the Frame Application.
| Editorial hint: This figure has no description |
| This sequence diagram does not clarify what the content of provisional and final responses is. If three devices are connected, the following responses are sent: Response 1: Device A (provisional) Response 2: Device A + B (provisional) Response 3: Device A + B + C (final) |
| The legend for [*] is missing. |
Used methods:
IFdtChannelScan::ScanRequest()
IDtmScanEvents::OnScanResponse()
