6.27 Instantiation of DTM and BTM

A BTM is created by the same mechanism as a DTM, which means the Frame Application always creates a BTM. If a DTM must create a BTM, it has to use the interface IFdtTopology of the Frame Application. BTMs are instantiated by:
  • Frame Application according to the defined sequence defined
  • DTM triggers as described below.
The word defined is duplicate here.

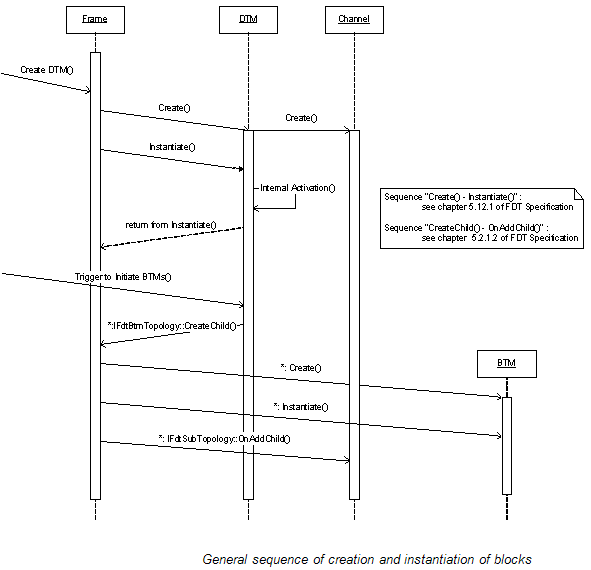

The verification of assigned Child-BTMs is done by using the ValidateAddChild() method of the IFdtChannelSubTopology interface. The general sequence is shown in the following chart. The creation of BTMs is possible in any of the following states:
  • Running
  • Configured
  • Communication set
  • Going Online
  • Going Offline
  • Online.
The trigger for creating BTMs (shown in the chart by the event "Trigger to Initiate BTMs") can originate from the following sources:
  • The DTM GUI (e.g. the GUI of the running DTM provides a method "Add block")
  • A function exposed by the DTM (that is, a function without GUI)
  • An event on the DTM (e.g., transition from state "Running" to state "Configured")

In contrast to other sequence charts, this one seems to consider time, except for the creation of channels.
What does *: mean?
The Frame Application can reject the CreateChild() method. In this case, the procedure of creation of the BTM is aborted. It is up to the user to create the BTM. It does not matter how to trigger BTMs initiation. The general sequence of events does not change. Thus, each DTM and each BTM is handled according to the DTM State Machine. If the DTM is loaded (transition from Up to Existing Created to Running states), it shall not automatically trigger the BTM creation. The Frame Application should handle the instantiation of the BTMs.
