6.13.3 Instantiation of a DTM User Interface

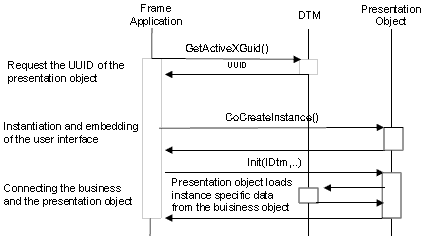

After creation of a DTM business object the Frame Application can instantiate a presentation object as user interface for a special task related to the application context . Within the Init() method the presentation object must initialize it’s device parameters based on the information of the business object.
Used methods:
Standard Microsoft
IDtmActiveXControl::Init()
IDtmActiveXInformation::GetActiveXGuid()
