6.17 Failsafe Data Access

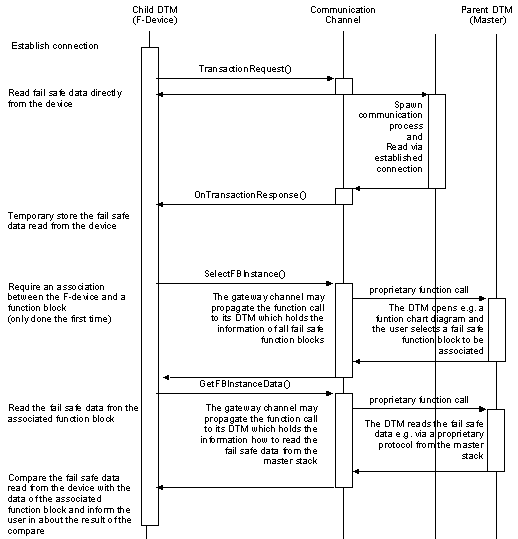

The sequence chart shows how to access failsafe data from a device and its associated function block via two independent communication links.
Used methods:
IFdtCommunication::TransactionRequest()
IFdtCommunicationEvents::OnTransactionResponse()
IFdtFunctionBlockData::SelectFBInstance()
IFdtFunctionBlockData::GetFBInstanceData()
| Although I do not yet fully understand this feature, I can see from the sequence chart that this is a blocking call again. Because the call SelectFBInstance() can only return after the user has selected something in the user interface, the DTM has to implement a message pump. |
