6.1.2 Asynchronous Connect

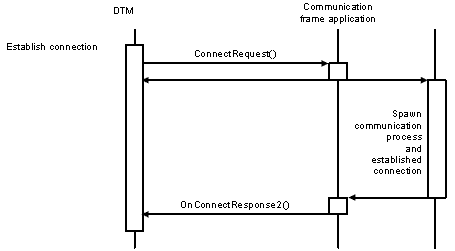

  • What exactly does "Communication frame application" mean?
  • The DTM will call ConnectRequest() at the communication channel.
    Communication DTMs, however, will directly establish communication to the hardware.
  • The DTM will also not receive the OnConnectResponse2() call by the frame application but from some object owned by the parent DTM.
  • The frame application will not spawn a communication process. This is typically done by the DTM.

Used methods:

IFdtCommunication::ConnectRequest()
IFdtCommunicationEvents2::OnConnectResponse2()
