6.18 Set or Modify Device Address With User Interface

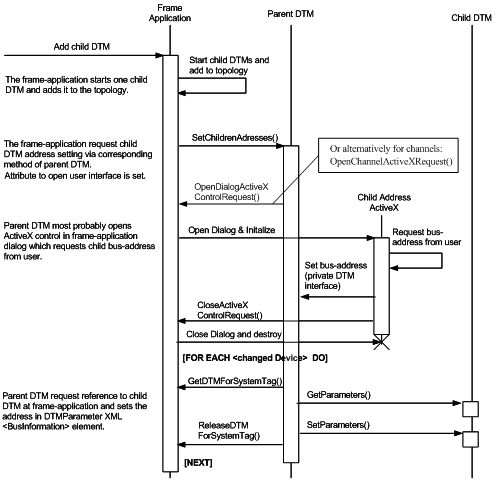

In this scenario Frame Application requests a set of specific child device addresses at DTMs. This sequence is for example started if new DTM is added to the topology. Similar sequence can be used if a Frame Application offers manual change of address in context of a DTM.
Used methods:
IFdtChannelSubTopology2::SetChildrenAdresses()
IFdtActiveX2:OpenDialogActiveXControlRequest()
IFdtActiveX::CloseActiveXControlRequest()
IFdtTopology::GetDtmForSystemTag()
IFdtTopology::ReleaseDtmForSystemTag()
IDtmParameter::SetParameters()
IDtmParameter::GetParameters()
|
It is not necessary to follow this sequence strictly.
I can imagine that the ActiveX calls GetDtmForSystemTag() GetParameters(), SetParameters() and ReleaseDtmForSystemTag() directly, before closing the user interface.
I think that I have seen that kind of implementation already working. And let me mention again that SetChildrenAddresses() was written with two D originally. |
