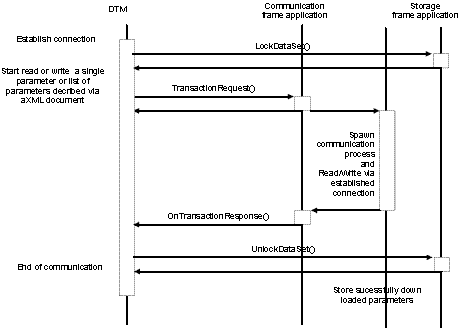

6.1.4 Asynchronous Transaction
Used methods:
IFdtCommunication::TransactionRequest()
IFdtCommunicationEvents::()
IFdtContainer::LockDataSet()
IFdtContainer::UnlockDataSet()
| In used method IFdtCommunicationEvents::() is obviously missing OnTransactionResponse() |
