6.10 Printing of Frame Application Specific Documents

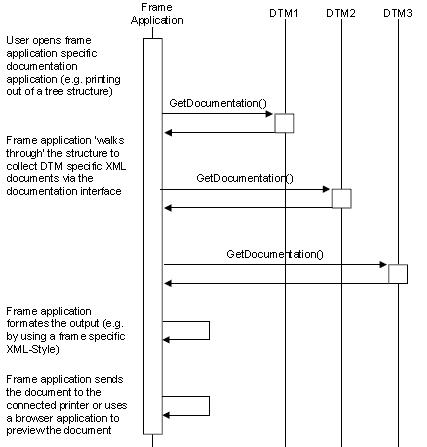

IDtmDocumentation allows the Frame Application to ask a DTM for context specific documents identified by the information passed via an XML document.
Used methods:
IDtmDocumentation::GetDocumentation()
