6.2.1 Generate Systemtopology
Following information reflects this topology:- The instance data set of the HART-Device
- The instance data set of the Remote-I/O
- The reference of the data sets HART-Device to Remote-I/O
6.2.1.1 Frame Applications point of view

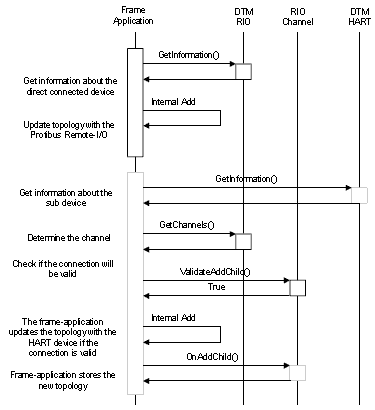

The Frame Application is responsible to generate and manage the topology. The sequence shows how the Frame Application manages the relation between DTMs and Communication-Channels.
| Editorial hint: This figure has no description |
IDtmInformation::GetInformation()
IDtmChannel::GetChannels()
IFdtChannelSubTopology::ValidateAddChild()
IFdtChannelSubTopology::OnAddChild()
6.2.1.2 DTMs point of view

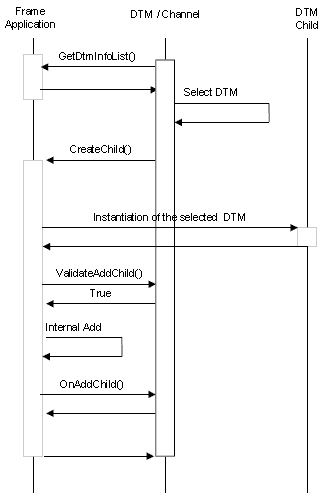

This sequence shows the generation of the topology triggered by a DTM.
| Editorial hint: This figure has no description |
IFdtTopology::GetDtmInfoList()
IFdtTopology::CreateChild()
IFdtChannelSubTopology::ValidateAddChild()
IFdtChannelSubTopology::OnAddChild()
