6.24.2 Does Not Support IFdtChannelActiveXControl2

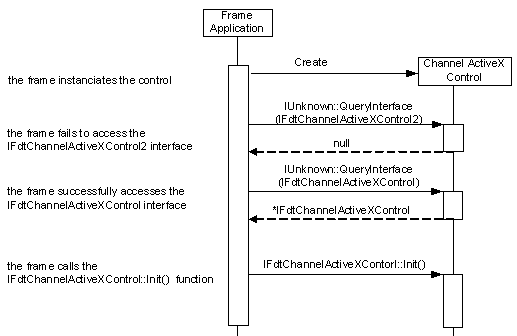

This diagram describes the sequence of the channel ActiveX control initialization for the case that the channel ActiveX control does not provide the IFdtChannelActiveXControl2 interface.
IUnkown::QueryInterface
IFdtChannelActiveXControl::Init()
