6.2.3 Asynchronous Transaction

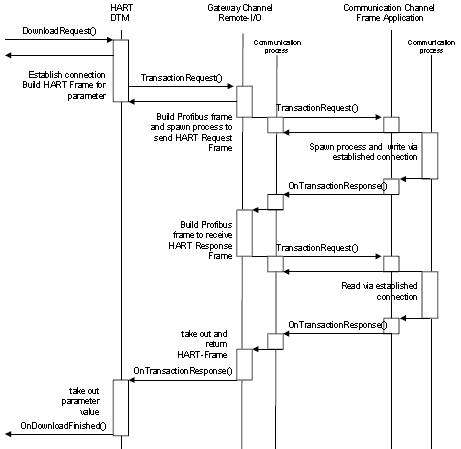

Example HART/PROFIBUS The transaction-function-call of the HART DTM is realized as a read and write-function at the PROFIBUS communication component of the Remote I/O. With the PROFIBUS write function the communication component transfers the HART data to the HART Master at the Remote I/O. The answer of the HART device can be received from the HART Master by the according PROFIBUS read function call. The addressing for the read and write function call depends on the hardware and the configuration of the Remote I/O and is well known to the communication channel.
Used methods:
IFdtCommunication::TransactionRequest()
IFdtCommunicationEvents::OnTransactionResponse()
IDtmOnlineParameter::DownloadRequest()
IDtmEvents::OnDownloadFinished()
