6.26 Usage of IDtmSingleDeviceDataAccess::ReadRequest() / WriteRequest()

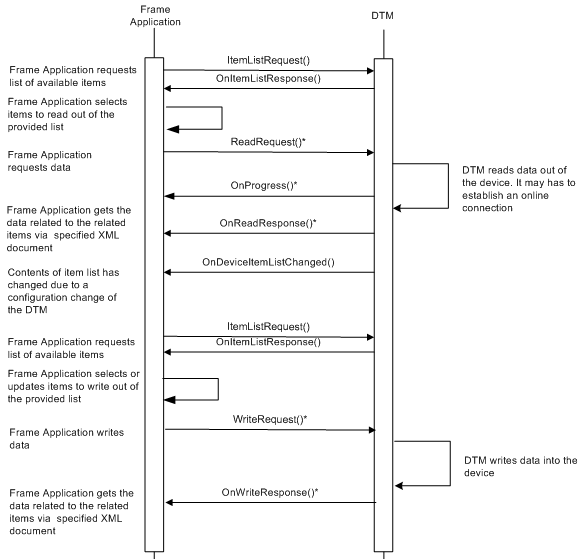

This sequence chart gives an example regarding handling of ReadRequest() and WriteRequest().
Used methods:
IDtmSingleDeviceDataAccess::ItemListRequest()
IDtmSingleDeviceDataAccessEvents::OnItemListResponse()
IDtmSingleDeviceDataAccess::ReadRequest()
IDtmSingleDeviceDataAccess::WriteRequest()
IDtmSingleDeviceDataAccessEvents::OnReadResponse()
IDtmSingleDeviceDataAccessEvents::OnWriteResponse()
IDtmEvents::OnProgress()
|
It may has to establish an online connection? Gets the data related to the related items? Contents have changed due to a configuration change? What do the asterisk characters try to explain? There is no legend. Removed the space in the chapter title. |
