6.12.1 Locking for Non Synchronized DTMs

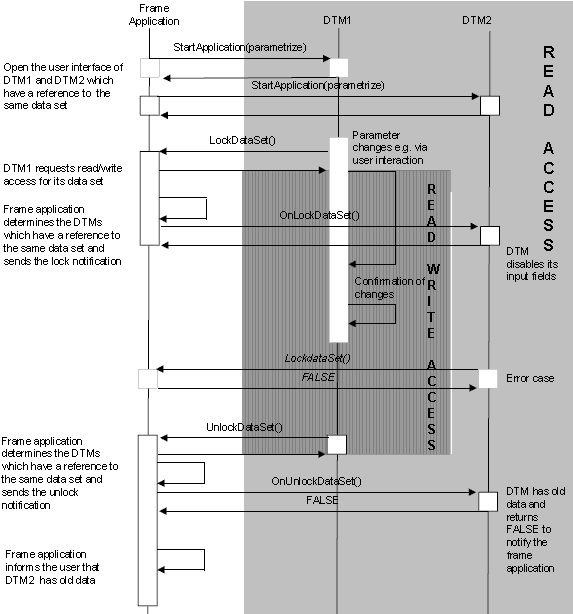

This locking mechanism is suitable for all DTMs which do not implement IFdtEvents::OnParameterChanged() (IFdtEvents::OnParameterChanged() returns E_NOTIMPL). The mechanism must be implemented to support multi-user environments.
Used methods:
IDtmApplication::StartApplication()
IFdtContainer::LockDataSet()
IFdtContainer::UnlockDataSet()
IFdtEvents::OnLockDataSet()
IFdtEvents::OnUnlockDataSet()
