6.20 Display or Modify All Child Device Addresses With User Interface

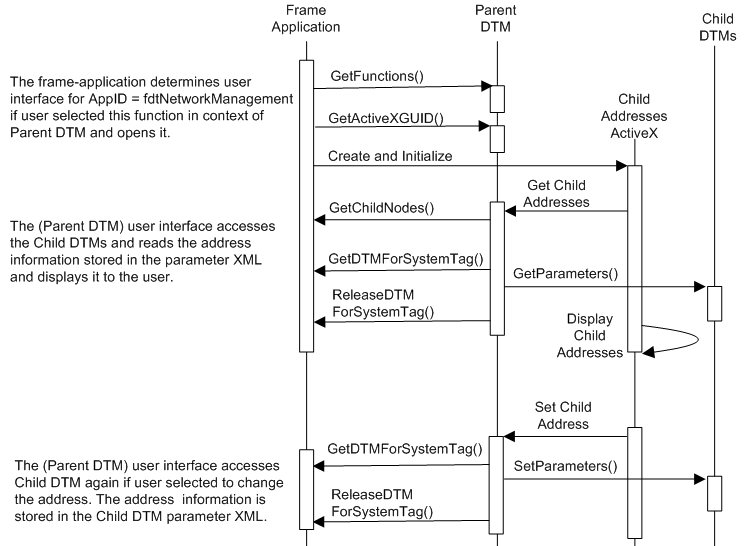

In this scenario Frame Application requests display or modification of all child device addresses at a DTM. This sequence is for example started if user selects corresponding menu entry in context of a communication or Gateway-DTM.
Used methods:
IDtm::GetFunctions()
IDtmActiveXInformation::GetActiveXGuid()
IFdtTopology::GetChildNodes()
IFdtTopology::GetDtmForSystemTag()
IFdtTopology::ReleaseDtmForSystemTag()
IDtmParameter::SetParameters()
IDtmParameter::GetParameters()
