6.13.4 Release of a DTM User Interface

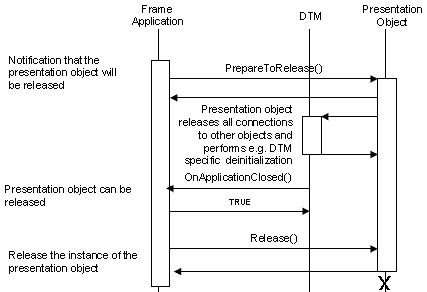

If the Frame Application wants to release a presentation object of a DTM it first has to prepare the release by sending a notification to the presentation object. After the IDtmActiveXControl::PrepareToRelease() method the presentation object must release all its connections to other components and can call DTM specific de-initialization methods.
Used methods:
Standard Microsoft
IDtmActiveXControl::PrepareToRelease()
IDtmEvents::OnApplicationClosed()
