6.7 Channel Access
The information for the access of I/O data of a device within a Frame Application and the communication interfaces for nested communication are available via FdtChannel objects. These objects carry all address information for the configuration of a fieldbus master or a connected fieldbus controller. How to access such a channel object is fieldbus independent. But the information which is accessible as an XML document depends on the specific fieldbus protocol.

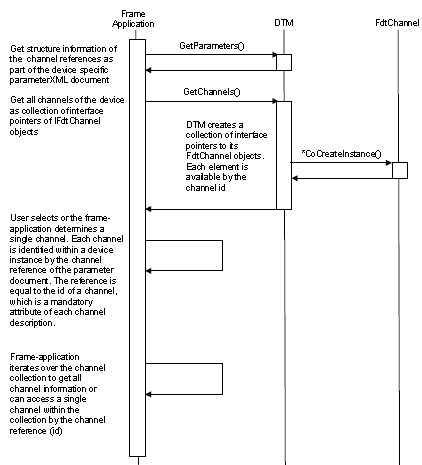

Used methods:
Standard Microsoft
IDtmParameter::GetParameters()
IDtmChannel::GetChannels()
| The legend for * is missing. |
