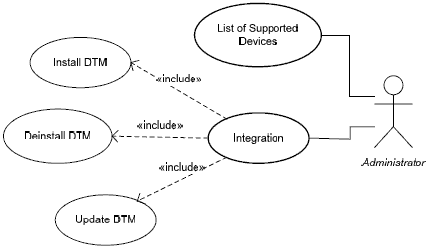

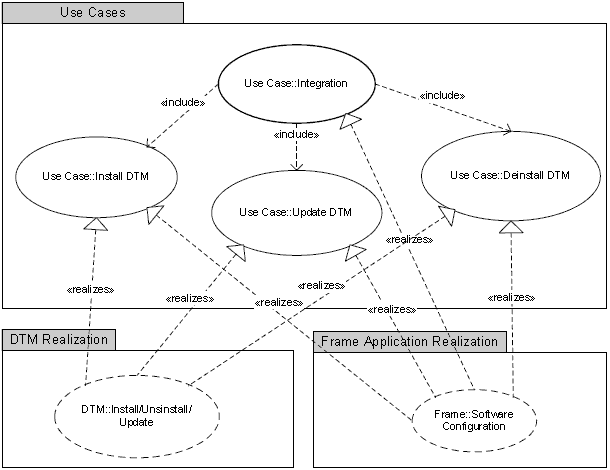

5.2.6 Administrator

Use Case:

Integration

Brief Description:

This use case enables the actor to install, deinstall or update new DTMs. Installation and deinstallation are not controlled by the Frame Application.

GUI:

The Frame Application may support the management of DTMs.

Print:

Not supported

Device Connection:

Must not have a connection established

Users:

Operator:

Not accessible

Maintenance:

Planning Eng.:

Administrator:

Accessible

OEM Service:

Not accessible

Included Use Case:

Install

Brief Description:

Installation of a new DTM.

GUI:

Responsibility of the DTM

Included Use Case:

Deinstall

Brief Description:

dito

GUI:

responsibility of the DTM

Included Use Case:

Update DTM

Brief Description:

dito

GUI:

responsibility of the DTM
