4.10.8.1 Device Identification

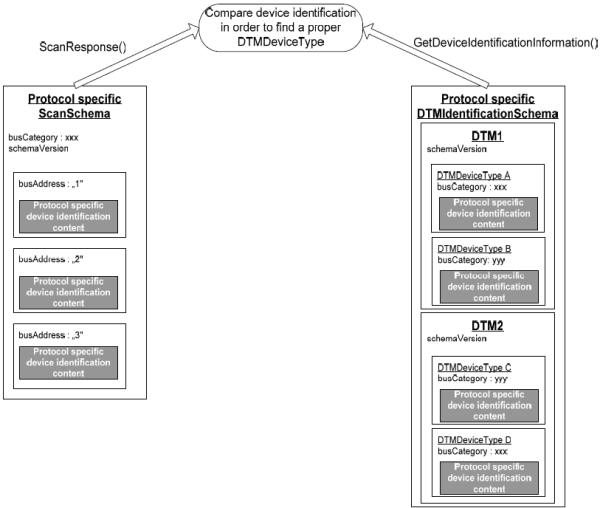

In order to identify a proper DTMDeviceType, a Frame Application has to compare identification information of scanned physical devices with identification information of a DTMDeviceType. These files must be converted to a field bus independent format using a fieldbus specific XSL transformation.

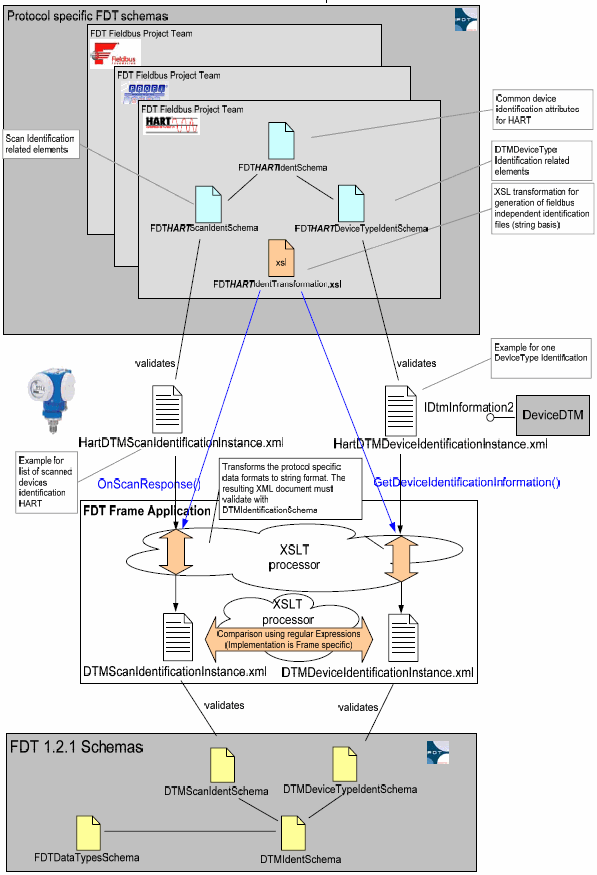

The following picture shows, how protocol specific schemas are integrated in the FDT specification and used by Frame Application and DTMs (Example HART is shown):

Picture: Structural overview
